Forgókaros stretch-fóliázó gépek, Full automata stretch-fóliázó gépek, Stretch-fóliázó gépek
Full automata REVOLUTION forgókaros stretch-fóliázó gép
Saját conveyoros forgókaros stretch-fóliázó gép
Fully automatic stretch wrapping machines, Rotary arm stretch wrapping machines, Stretch wrapping machines

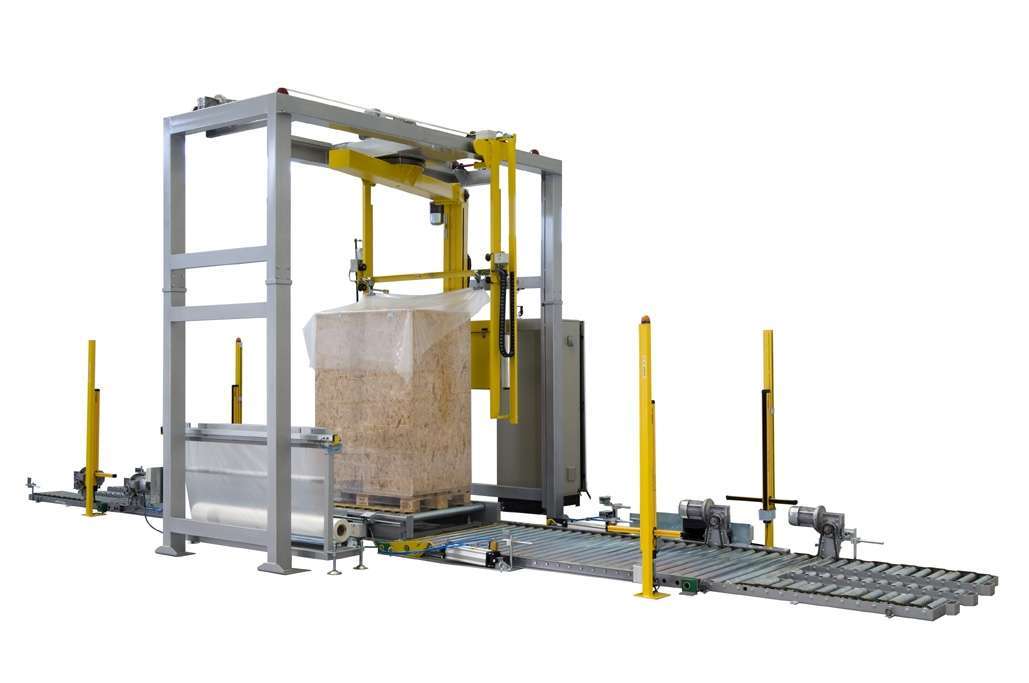

Fully automatic REVOLUTION rotary arm stretch wrapping machine
Our own conveyor rotary arm stretch wrapping machine
Műszaki adatok
Műszaki adatok
MŰSZAKI ADATOK
- max. raklap méret: 1250 x 1250 mm
- raklap homlokzati irány: igény szerint
- max. rakat súly: 1200 kg (76 mm-es görgők esetén)
- max. csomagolási magasság: 2400 mm (raklapot beleértve)
- fedőlap: igen
- felső leszorító egység: igen
- görgős szállítópálya sebessége: 12 – 20 m/percig (inverter beépítésével) – a termékek stabilitásától és a csomagológép kapacitásától függvényében
- görgős szállítópálya magassága: 400 mm (kérésre módosítható)
- villamos feszültség: 400V – 50Hz, 3 fázis + nulla + föld
- PLC kimenő/bejövő feszültésg: 24V
- pneumatikus nyomás: szárazlevegő 6 bar
- max. termelési kapacitás: 90 raklap/óra 10-12 áttekercseléssel
- festés/szín: standard szürke, sárga
- raklapmagasság-érzékelő fotocella
- automata, önbeálló hegesztő- és vágórendszer
- a forgókar sebessége (30 rpm), a kocsi emelkedési, süllyedési sebessége frekvenciaváltóval szabályozható
Alapfelszereltség
„FE” típusú kocsi elektromágneses fékkel a gumírozott fóliavezető tengelyen – elektronikusan állítható
A fóliafeszesség az irányítófülke érintőképernyőjén szabályozható.
Szerkesztő Plusz kiemelt gondolat
Egyedülállóan kompakt, saját conveyoros nagyteljesítményű forgókaros stretch-fóliázó gép. Kitűnő választás csúszós, borulós rakatok esetében is. Önnek a fóliacserén kívül semmi mással nem kell foglalkoznia. Nagyban gondolkozik? Akkor ez az Ön gépe!
Szerkesztő EGYÉB adatok
Fóliakocsi opciók
„PRS” (power roller stretch) típusú kocsi fix előnyújtással
Szerkesztő EGYÉB adatok
Opciók
- másodlagos elektromos „PRS” (power roller stretch) típusú kocsi a forgókaron, önálló emelő motorral, ugyanazt a vágó és hegesztő egységet használja
- fűthető Teflon hegesztőlap a tökéletes csomagolásért
- TELEMECANIQUE 3 színű jelzőlámpák
- integrált fedőlap adagoló elektronikus szabályozóval
- conveyorba integrált mérleg: max 2000 kg, fotocellával
- raklap emelő – pneumatikus vezérlésű, lehetővé teszi a rakodólap teljes befedését. Max. teherbírás: 1500 kg
- kötöző rendszer – a fólia szélességét lecsökkentve, kötélként erősíti meg rakományt.
- pantográf felső leszorító egység
- motoros görgőpálya a beadagoló oldalon változtatható sebességgel (a biztonsági kapuhoz, 76 mm átmérőjű görgőkkel)
- motoros görgőpálya a beadagoló oldalon változtatható sebességgel (a TOP COVER pass through-hoz, 76 mm átmérőjű görgőkkel)
- inverter által szabályozható görgőpálya változtatható sebességgel
- motoros görgőpálya a kiadagoló oldalon 12m/perc fix sebességgel (20m/perc-ig bővíthető, 76 mm átmérőjű görgőkkel)
- 89 mm átmérőjű görgők
Technical details
Technical details
TECHNICAL DATA
- max. pallet size: 1250 x 1250 mm
- pallet face direction: as required
- max. pallet weight: 1200 kg (for 76 mm rollers)
- max. packaging height: 2400 mm (including pallet)
- cover: yes
- upper clamping unit: yes
- roller conveyor speed: 12 – 20 m/min (with inverter installed) – depending on the stability of the products and the capacity of the packaging machine
- roller conveyor height: 400 mm (can be modified on request)
- electrical voltage: 400V – 50Hz, 3 phases + neutral + earth
- PLC output/input voltage: 24V
- pneumatic pressure: dry air 6 bar
- max. production capacity: 90 pallets/hour with 10-12 rewinds
- painting/color: standard gray, yellow
- pallet height sensor photocell

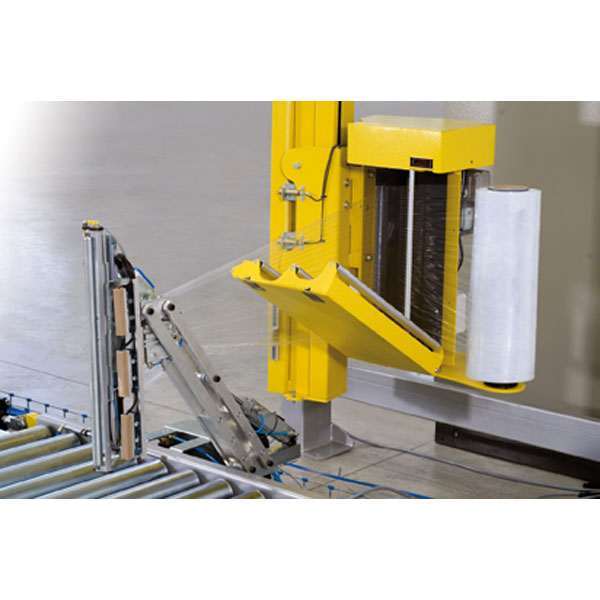

- automatic, self-adjusting welding and cutting system
- rotary arm speed (30 rpm), carriage rise and fall speed can be controlled by frequency converter
Standard equipment
„FE” type carriage with electromagnetic brake on the rubberized film guide shaft – electronically adjustable
The film tension can be controlled on the touch screen of the control cabin.
Editor Plus featured idea
A uniquely compact, high-performance rotary arm stretch wrapping machine with its own conveyor. An excellent choice for slippery, overturned stacks. You don’t have to worry about anything other than changing the film. Thinking big? Then this is your machine!
Editor OTHER data
Foil trolley options
„PRS” (power roller stretch) type trolley with fixed pre-stretch
Editor OTHER data
Options
- secondary electric „PRS” (power roller stretch) type trolley on the rotating arm, with independent lifting motor, uses the same cutting and sealing unit
- heatable Teflon sealing plate for perfect packaging
- TELEMECANIQUE 3-color indicator lights
- integrated cover sheet feeder with electronic controller
- conveyor integrated scale: max 2000 kg, with photocell
- pallet lifter – pneumatically controlled, allows complete covering of the pallet. Max. load capacity: 1500 kg
- Tie-down system – reduces the width of the film and strengthens the load like a rope.
- Pantograph upper clamping unit
- Motorized roller conveyor on the infeed side with variable speed (for the safety gate, with 76 mm diameter rollers)
- Motorized roller conveyor on the infeed side with variable speed (for the TOP COVER pass through, with 76 mm diameter rollers)
- Inverter-controlled roller conveyor with variable speed
- Motorized roller conveyor on the outfeed side with fixed speed of 12m/min (expandable to 20m/min, with 76 mm diameter rollers)
- 89 mm diameter rollers
