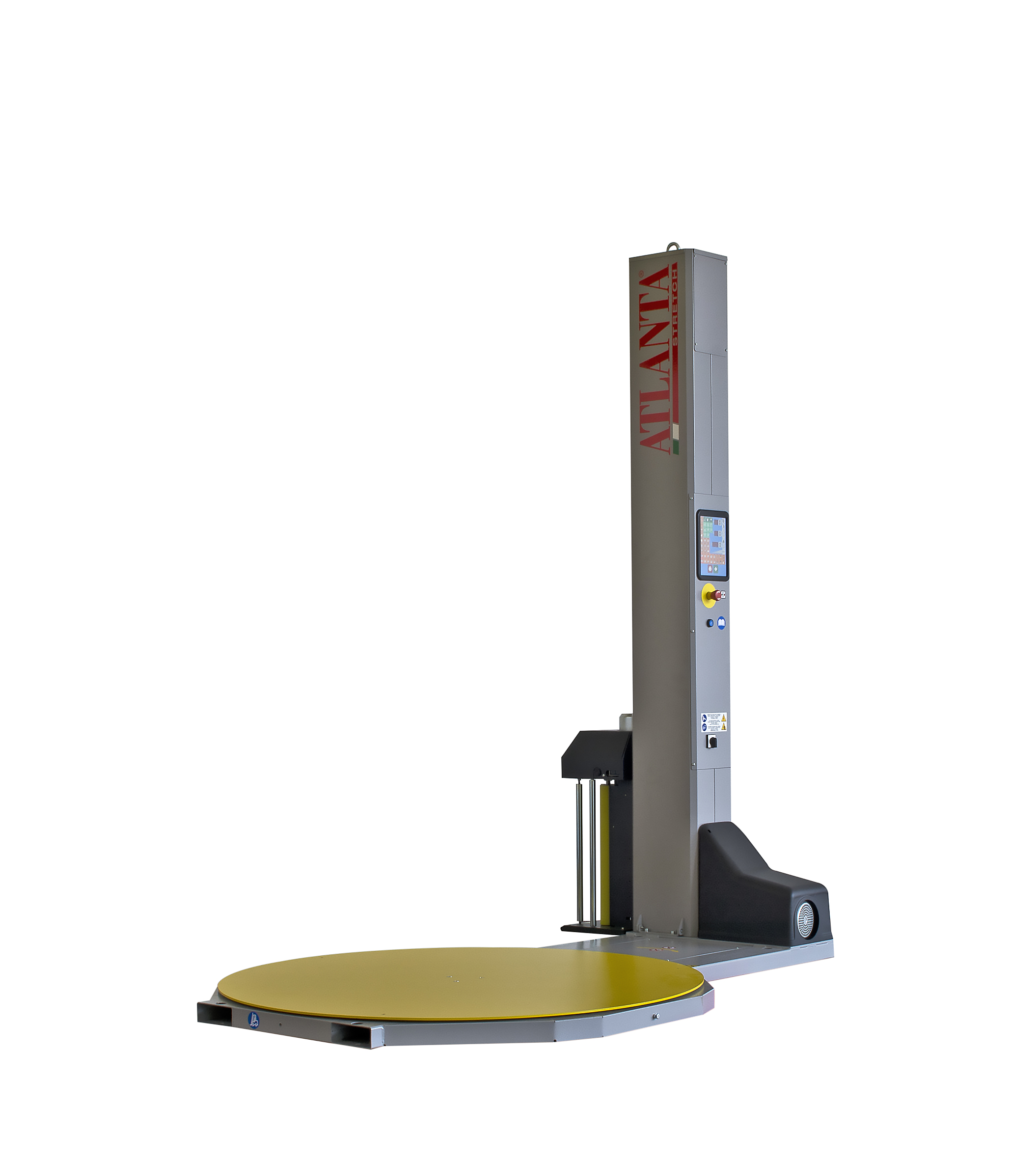

Semi-automatic SYNTHEX turntable stretch wrapping machine
An improved version of Synthesi
TECHNICAL DATA
- turntable diameter: 1500 mm/1650 mm
- max. pallet size: 800/1000 x 1200 mm
- max. pallet weight: 1500/2000 kg
- max. packaging height: 2200 mm (including pallet)
- photocell detecting the stack height
- frequency converter can regulate the turntable speed (slow start/stop)
- frequency converter can regulate the trolley rise/fall speed
- sound signal at cycle start and phase stop at cycle end
- panic button and restart button in accordance with the latest CE standards
- safety unit at the bottom of the film trolley
- CE certification
Standard equipment
– “PRS” type trolley with fixed pre-stretch (150, 200, 250%)
– the film tension acting on the stack can be electronically controlled
– rapid film insertion system (IRF) safety with equipment
– Standard voltage: 230V – 1PH+N+PE – 50/60 Hz
OPTIONS
- automatic foil cutting unit (for FE, PRS and PS carriages)
- selectable 150%, 200% and 250% pre-stretching gears
- high sensitivity photocell for black and glossy products
- max. stack weight 3000 kg
- stetch film usage control
- automatic pneumatic clamping unit from 600 mm to stack height
- manual strapping function to reinforce the packaging
- column for max. 2500 mm packaging height
- column for max. 3000 mm packaging height
- column for max. 3300 mm packaging height
- column max. for 3700 mm packaging height
- extended base
- 1650 mm turntable
- 1800 mm turntable
- 2200 mm turntable
- transpallet (TP) turntable in 1650 mm diameter
- transpallet (TP) turntable in 1800 mm diameter
- ramp for 1500 and 1650 mm turntables
- ramp for 1800 mm turntable
- ramp for 2200 mm turntable
- reinforced ramp for 1500 – 2200 mm for turntables
- longer ramp for 1500 – 2200 mm turntables
- 12 cm raised base for electric manual “frogs”
- printer for the built-in load weight measuring system
- guide holder for roller carts
- installation frame for 1500 and 1650 mm turntables
- installation frame for 1800 mm turntables
- installation frame for 2200 mm turntables
Editor Plus featured idea
SYNTHEX is an improved version of the SYNTHESI entry-level model. The film carriage is PRS type, capable of fixed pre-stretching.
